Low Pass Filters LPF10.9

Characteristics

Part Number

Cutting wavelength,
λc, µm
Max transmittance
of pass band, %
Damage threshold, W/cm2,CW
LPF10.9-24 27.5
73
8
LPF10.9-35
LPF10.9-47

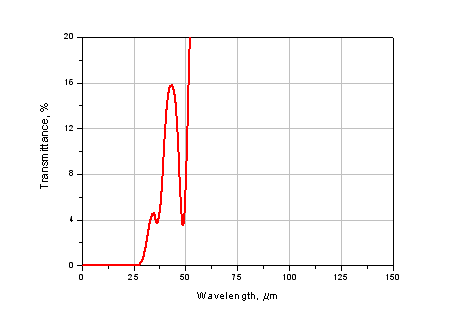

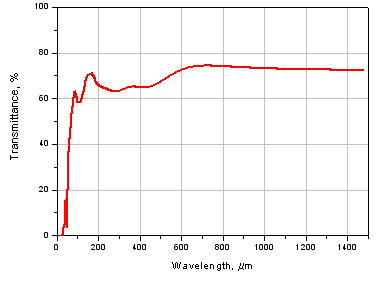

Spectral Curves

THz Low Pass Filter LPF10.9
THz Low Pass Filter LPF10.9

Sizes and Shapes

Round filters with clear aperture/outer diameter  24/31, 35/44, and 47/60 mm are available from stock.
Alternate sizes and custom designs are available upon request.
