THz Low Pass Filters
 |
Download THz Low Pass Filters Datasheet (PDF, 499 KB) |
THz Low Pass Filters are meant to transmit THz radiation and block short wavelengths. The filter is a set of materials mounted in a holder with a fit ring. Operation principle of the filters is based on the redistribution of the radiation by means of dispersion, reflection, scattering, diffusion, diffraction, and interference.
Applications:
- THz spectroscopy;
- Imaging;
- THz testing devices;
- Astronomy, space based astronomy, and astrophysics;
- Materials research;
- Sensors and detectors;
- Electro-optic research.
Features:
- Performance in wavelength range from IR to MM;
- High transmittance in pass band;
- Low transmittance (<0.1%) in stop band;
- Mounted in holders.
Parts Numbers Designation, Characteristics and Spectral Curves
Part Number Designation for Tydex Low Pass Filter: LPF <frequency, THz> - <aperture, mm>
| Part Number Designation |
Cutting wavelength, λc, µm |
Max transmittance of pass band, % |
Damage threshold, W/cm2,CW |
| LPF23.4-24 | 13 | 92 | 7 |
| LPF23.4-35 | |||
| LPF23.4-47 | |||
| LPF23.3-24 | 13 | 94 | 7 |
| LPF23.3-35 | |||
| LPF23.3-47 | |||
| LPF23.1-24 | 13 | 91 | 7 |
| LPF23.1-35 | |||
| LPF23.1-47 | |||
| LPF14.3-25 | 21 | 95 | 7 |
| LPF14.3-35 | |||
| LPF14.3-47 | |||
| LPF10.9-24 | 27.5 | 73 | 8 |
| LPF10.9-35 | |||
| LPF10.9-47 | |||
| LPF8.8-24 | 34 | 80 | 8 |
| LPF8.8-35 | |||
| LPF8.8-47 | |||
| LPF5.5-24 | 55 | 83 | 8 |
| LPF5.5-35 | |||
| LPF5.5-47 | |||
| LPF4.3-24 | 70 | 82 | 8 |
| LPF4.3-35 | |||
| LPF4.3-47 | |||
| LPF4.0-24 | 75 | 82 | 8 |
| LPF4.0-35 | |||
| LPF4.0-47 | |||
| LPF3.2-24 | 94 | 81 | 8 |
| LPF3.2-35 | |||
| LPF3.2-47 |
Sizes and Shapes

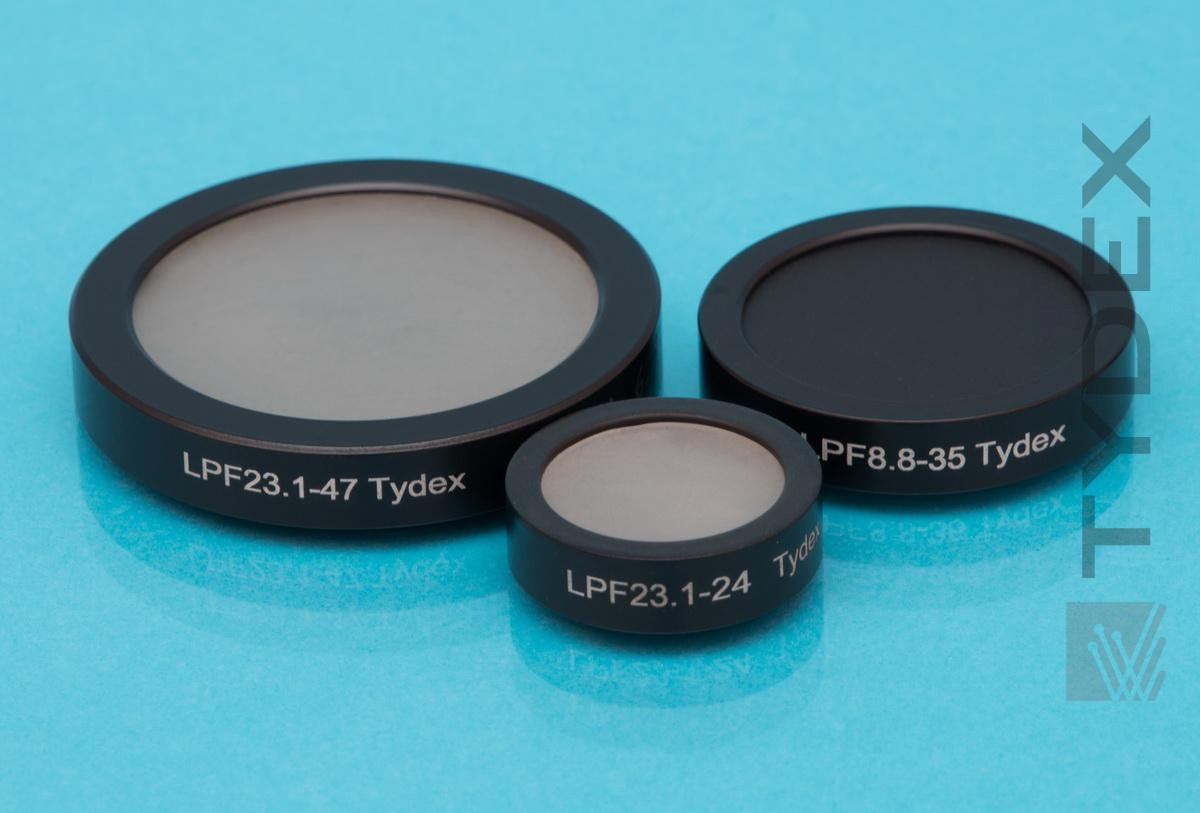

Round filters with clear aperture/outer diameter 24/31, 35/44, and 47/60 mm are available from stock.
Alternate sizes and custom designs are available upon request.
