Low Pass Filters LPF4.3

Characteristics

Part Number

Cutting wavelength,
λc, µm
Max transmittance
of pass band, %
Damage threshold, W/cm2,CW
LPF4.3-24 70
82 8
LPF4.3-35
LPF4.3-47

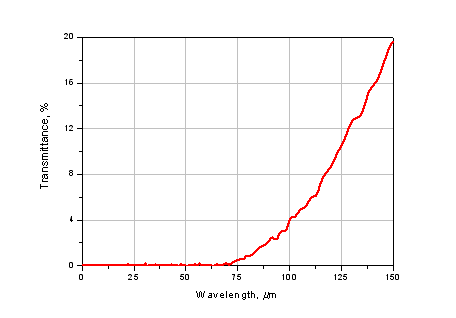

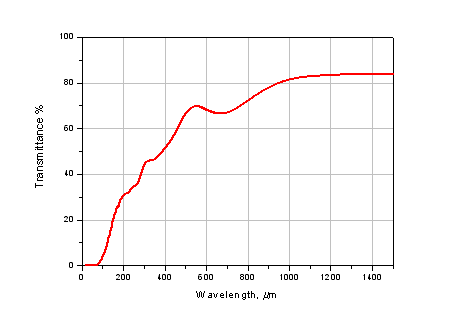

Spectral curves

THz Low Pass Filter LPF4.3
THz Low Pass Filter LPF4.3

Sizes and Shapes

Round filters with clear aperture/outer diameter  24/31, 35/44, and 47/60 mm are available from stock.
Alternate sizes and custom designs are available upon request.
For price quotation and delivery please fill in our Request Form.
