Mirrors for Nd:YAG lasers

Tydex offers the mirrors used as high reflectors (including in-cavity laser mirrors), dichroic (including hot/cold) mirrors or partial reflecting output couplers. Parts of round, square, rectangular, and elliptical shapes are offered.

Specification:

Substrate material: KU-1, K8
Surface figure @ 633nm: l/10
Surface quality, scr/dig: 20/10
Clear aperture: exceeds central 85% of dimension
Dimensional tolerance, mm: +0/–0.25
Thickness tolerance, mm: ±0.25
Wedge, arc.min <=5
Edge thickness variation, mm: <= 0.05
Coating: dielectric, metal-dielectric, metallic; user specified
Damage threshold, J/cm2: 2-5, depending on coating spec.



No. Diameter, mm Thickness, mm
1 12.7 3.175
2 12.7 6.35
3 19.05 9.525
4 25.4 6.35
5 25.4 9.525
6 38.1 6.35
7 38.1 9.525



Here are some examples of the mirror coatings:

K8 dichroic mirror (hot mirror), R=95.0%+/-4% @ 900-1100 nm, T >= 90% @ 808 nm

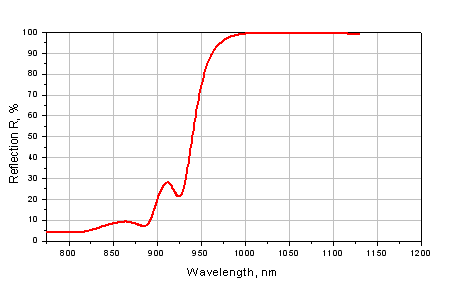

Fig. 1 K8 dichroic mirror (hot mirror), R=95.0%+/-4% @ 970-1100 nm, T >= 90% @ 808 nm.

UV Fused Silica laser mirror, R >= 99.5% @ 266 nm, AOI=45°, S-polarization

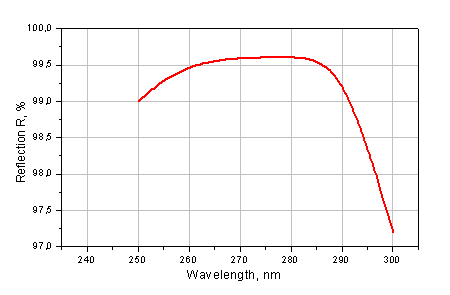

Fig. 2 UV Fused Silica laser mirror, R >= 99.5% @ 266 nm, AOI=45°, S-polarization.

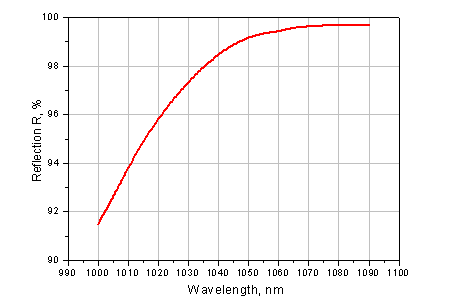

K8 end cavity mirror, R >= 99.5% @ 1064 nm, AOI=45°

Fig. 3 K8 end cavity mirror, R >= 99.5% @ 1064 nm, AOI=45°.

K8 dichroic mirror, AR (R >= 0.5%) @ 266 nm/R>=99.5% @ 280-308 nm, T >= 90% @ 266 nm, AOI=0°

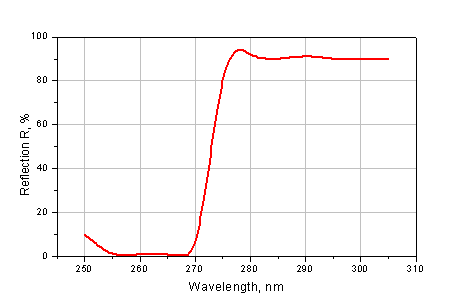

Fig. 4 K8 dichroic mirror, AR (R <= 0.5%) @ 266 nm, R>=90% @ 280-308 nm, T >= 90% @ 266 nm, AOI=0°.
